Create TMC Reports

This documentation shows how to generate and view various types of reports for your Turning Movement Counts (TMC) study. Below are the steps to navigate and understand the available reports:

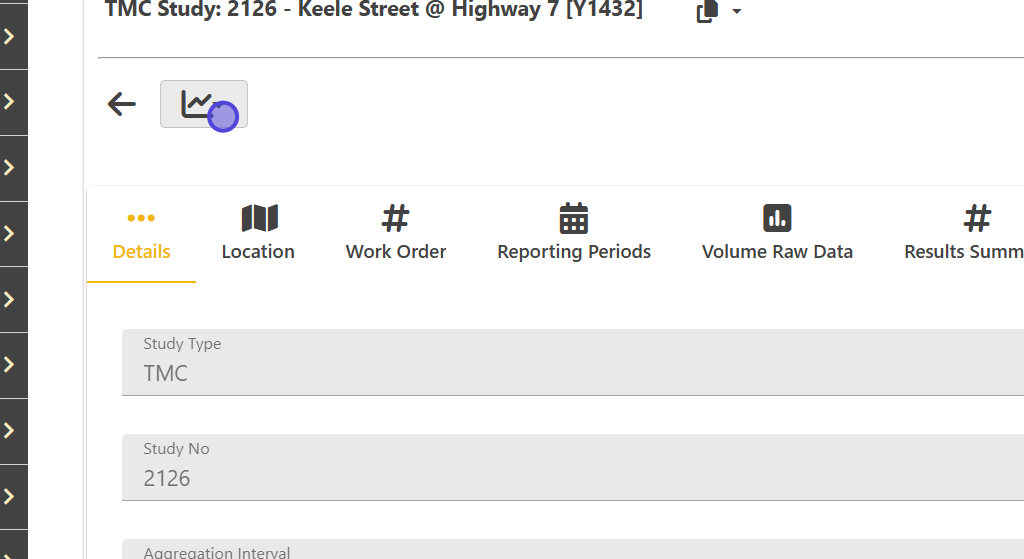

1. Access Reports Tab​

  • Navigate to the Reports tab in your TMC study.

  • This is where you can generate and access the different TMC reports.

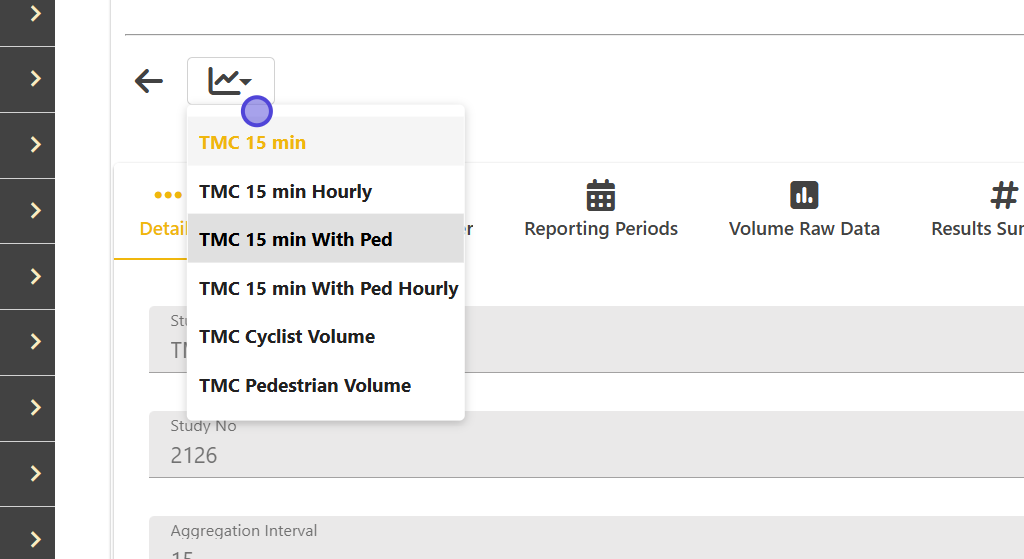

2. Select Type of Report​

The following TMC report options are available from the dropdown menu:

  • TMC 15 min

  • TMC 15 min Hourly

  • TMC 15 min With Ped

  • TMC 15 min With Ped Hourly

  • TMC Cyclist Volume

  • TMC Pedestrian Volume

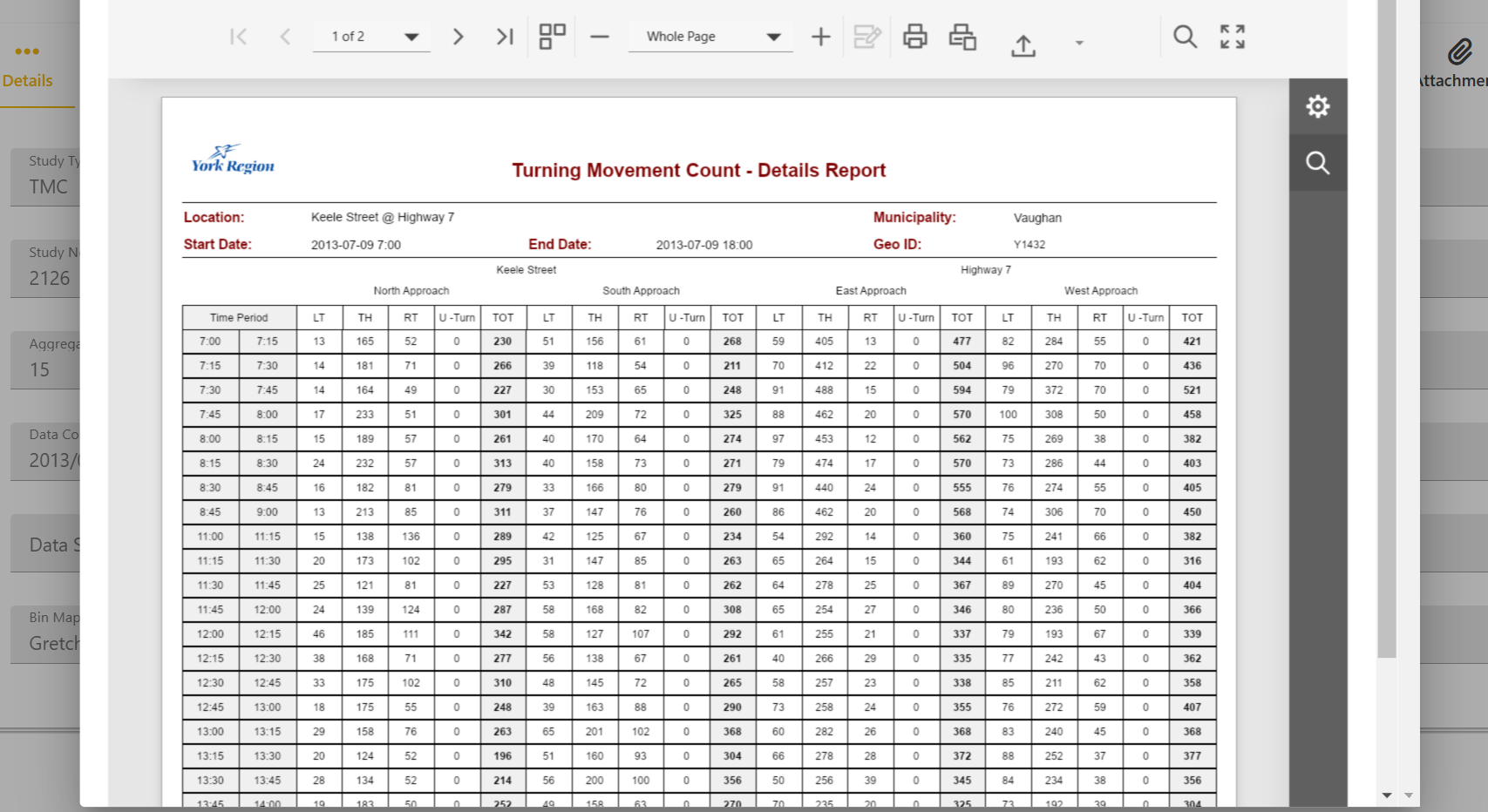

3. TMC 15 min Report​

This report shows the turning movement counts recorded from each approach at 15-minute intervals .

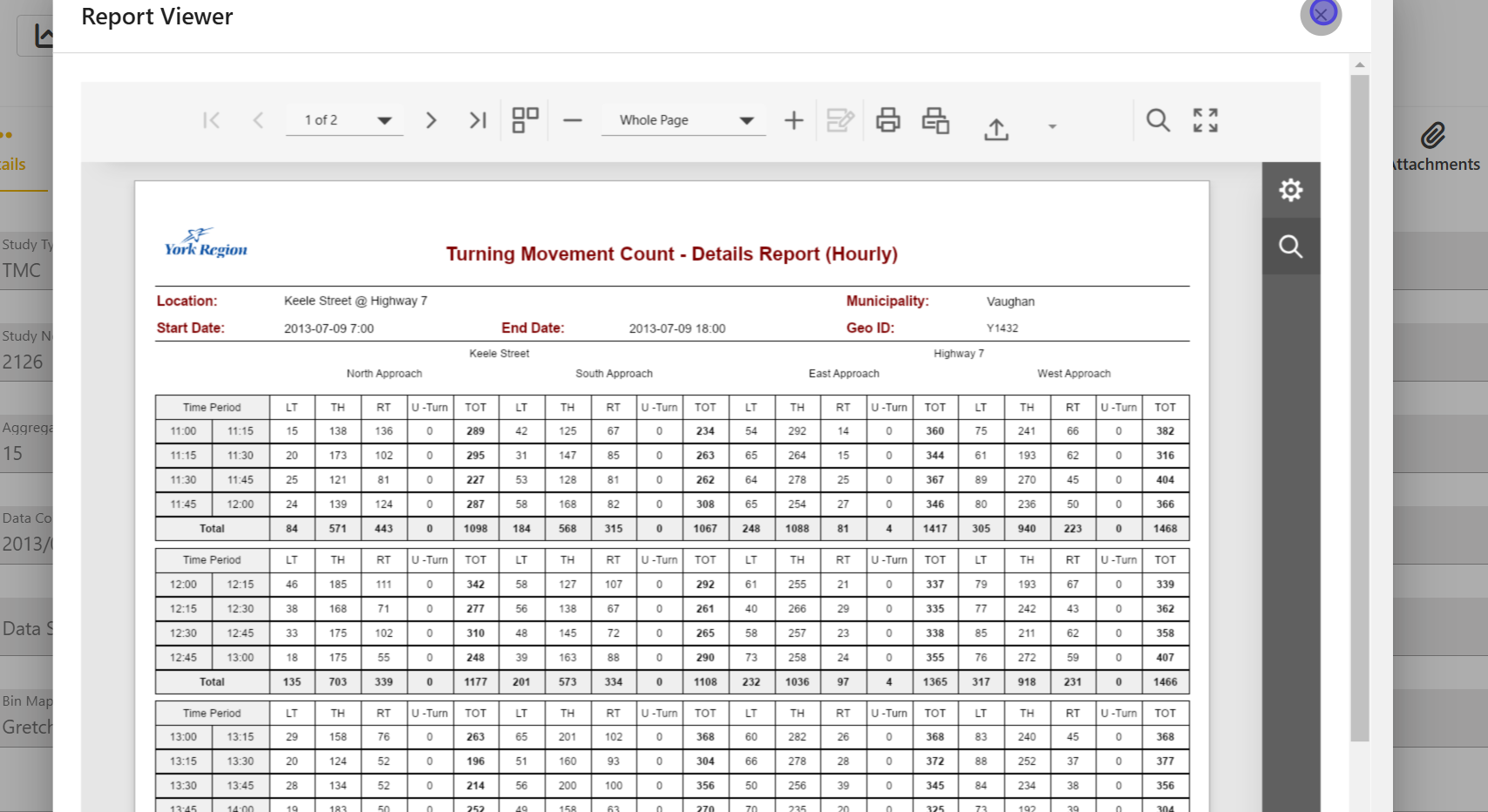

4. TMC 15 min Hourly Report​

This report provides the turning movement counts recorded from each approach at 15-minute intervals , with a total for each hour.

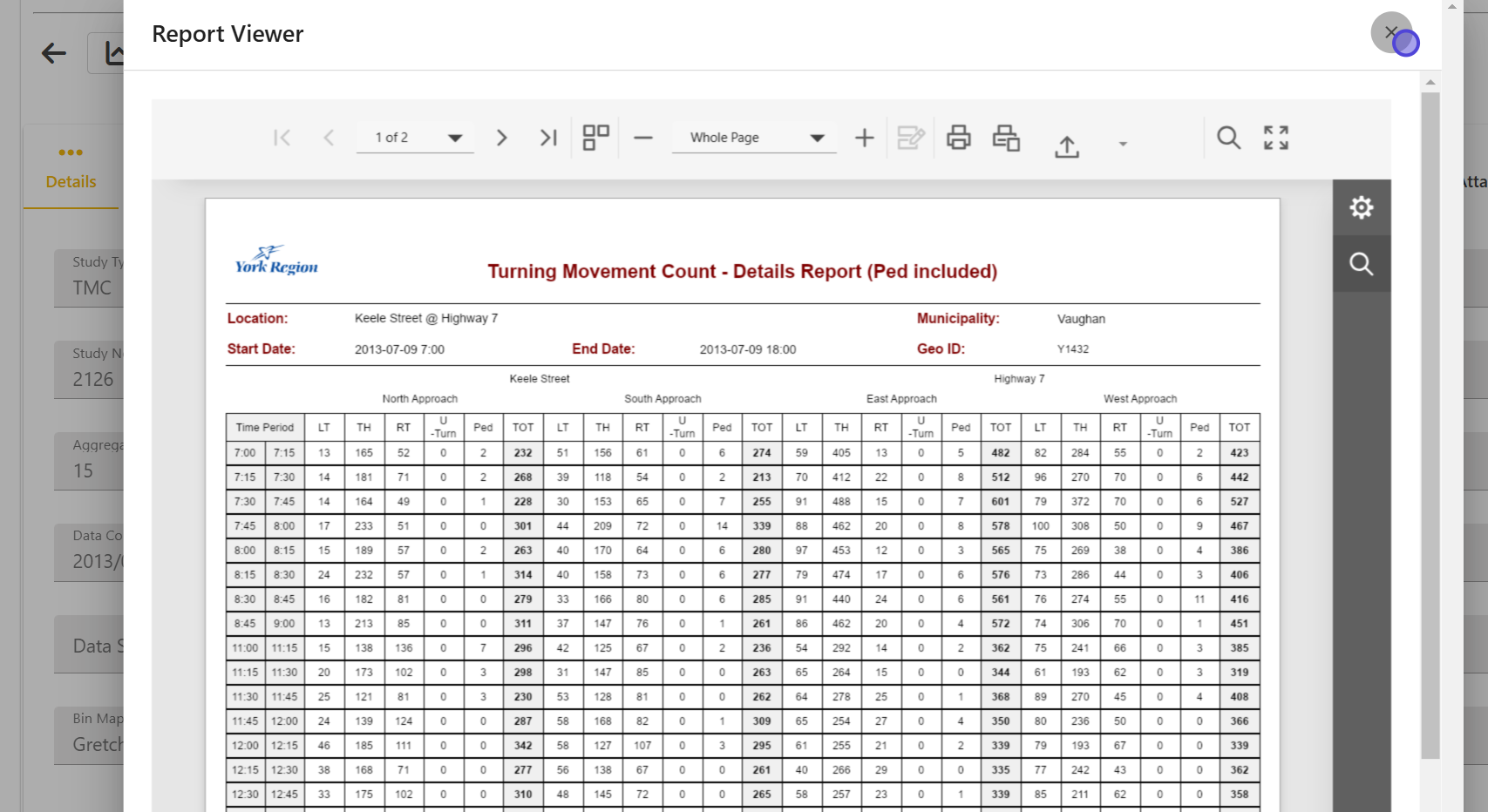

5. TMC 15 min Pedestrian Included Report​

Displays the turning movement counts as well as the number of pedestrians recorded at 15-minute intervals for each approach.

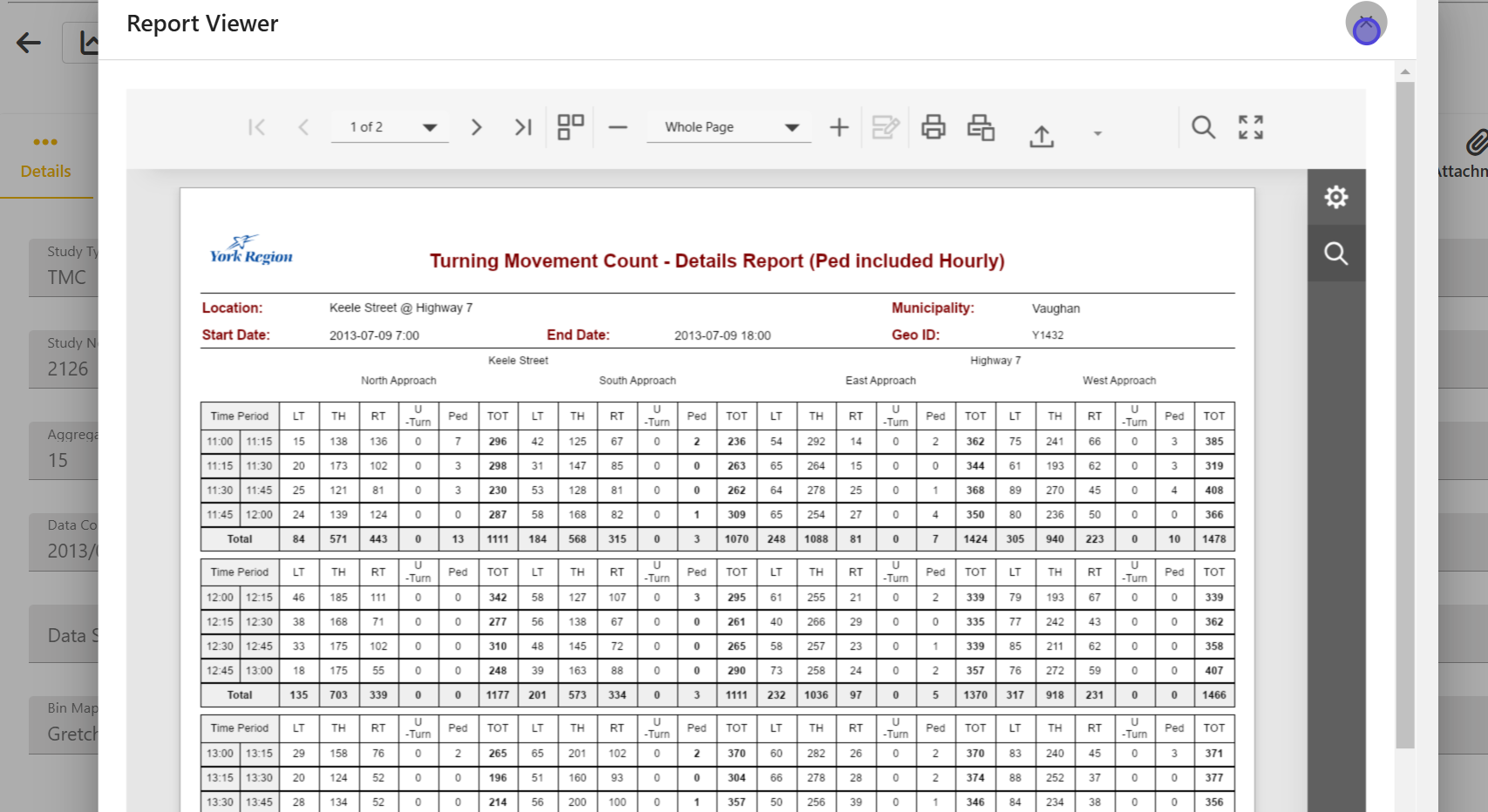

6. TMC 15 min Pedestrian Included Hourly​

Displays the turning movement counts and number of pedestrians recorded from each approach at 15 minute intervals and the hourly total.

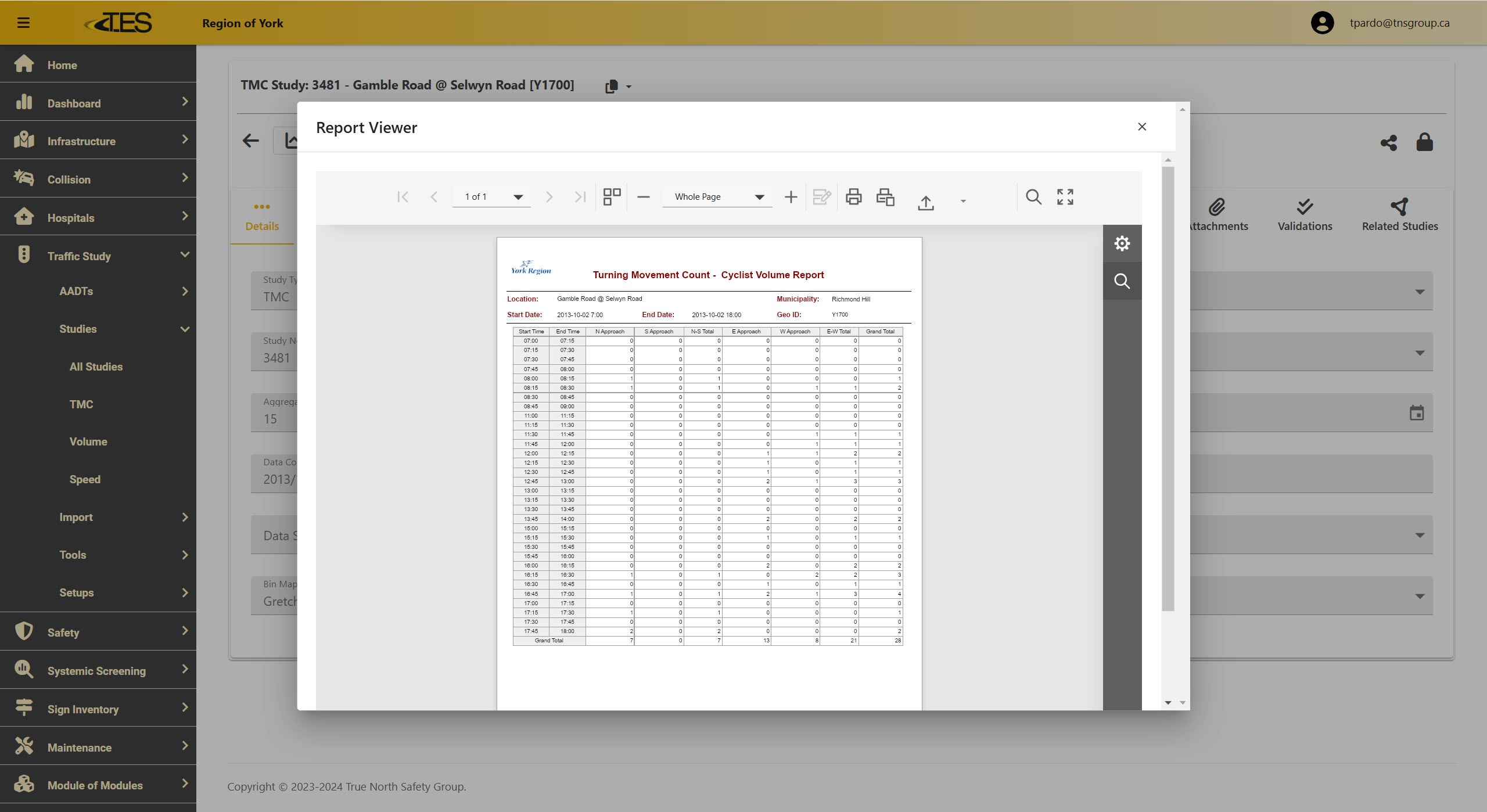

7. Cyclist Volume Report​

Highlights the volume of cyclists recorded from each approach at 15-minute intervals .

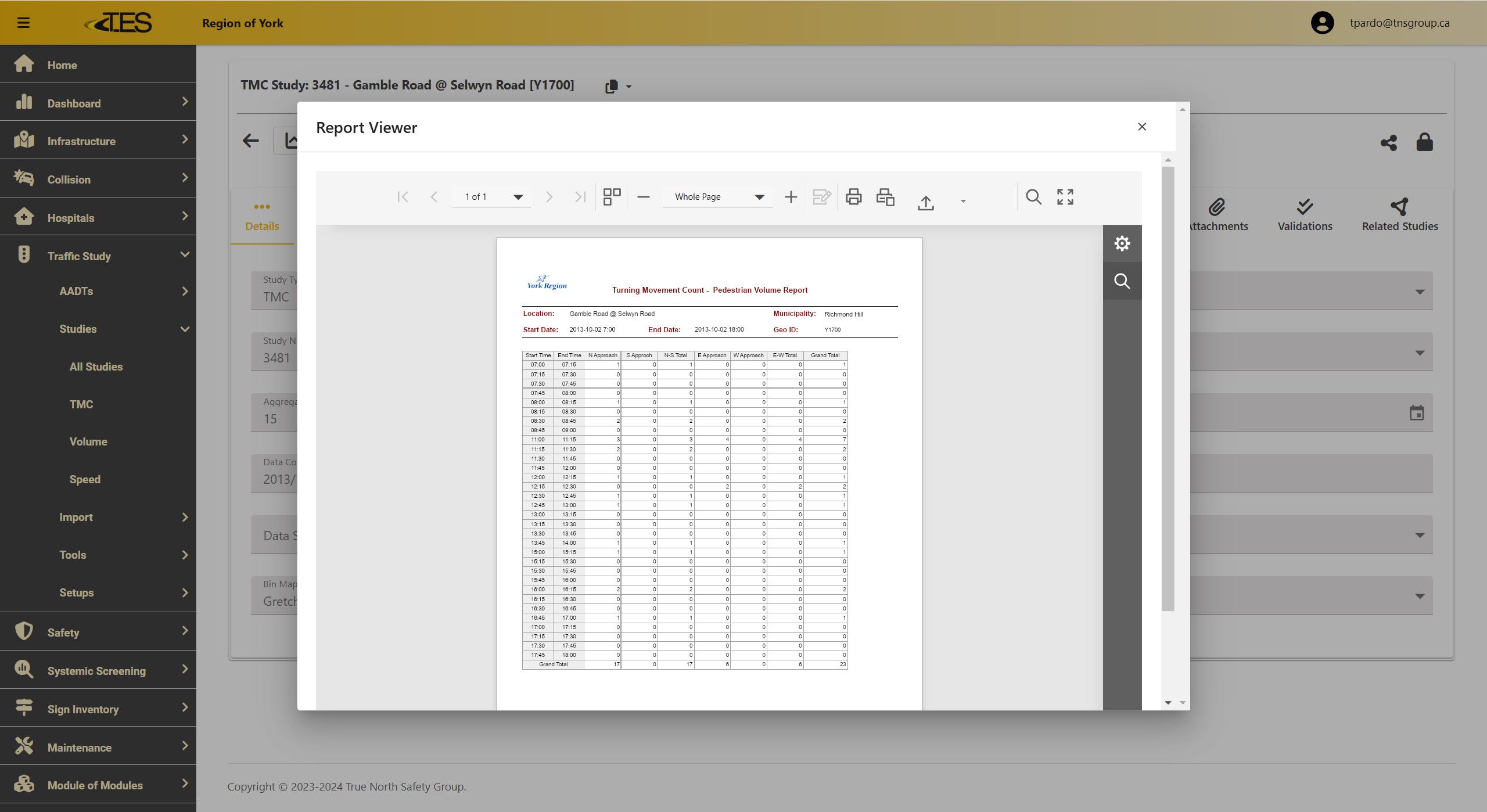

8. Pedestrian Volume Report​

Displays the volume of pedestrians recorded from each approach at 15-minute intervals .
