Results Summary: Diagram

This documentation goes over the Diagram in the Results Summary tab.

1. Access Results Summary Tab​

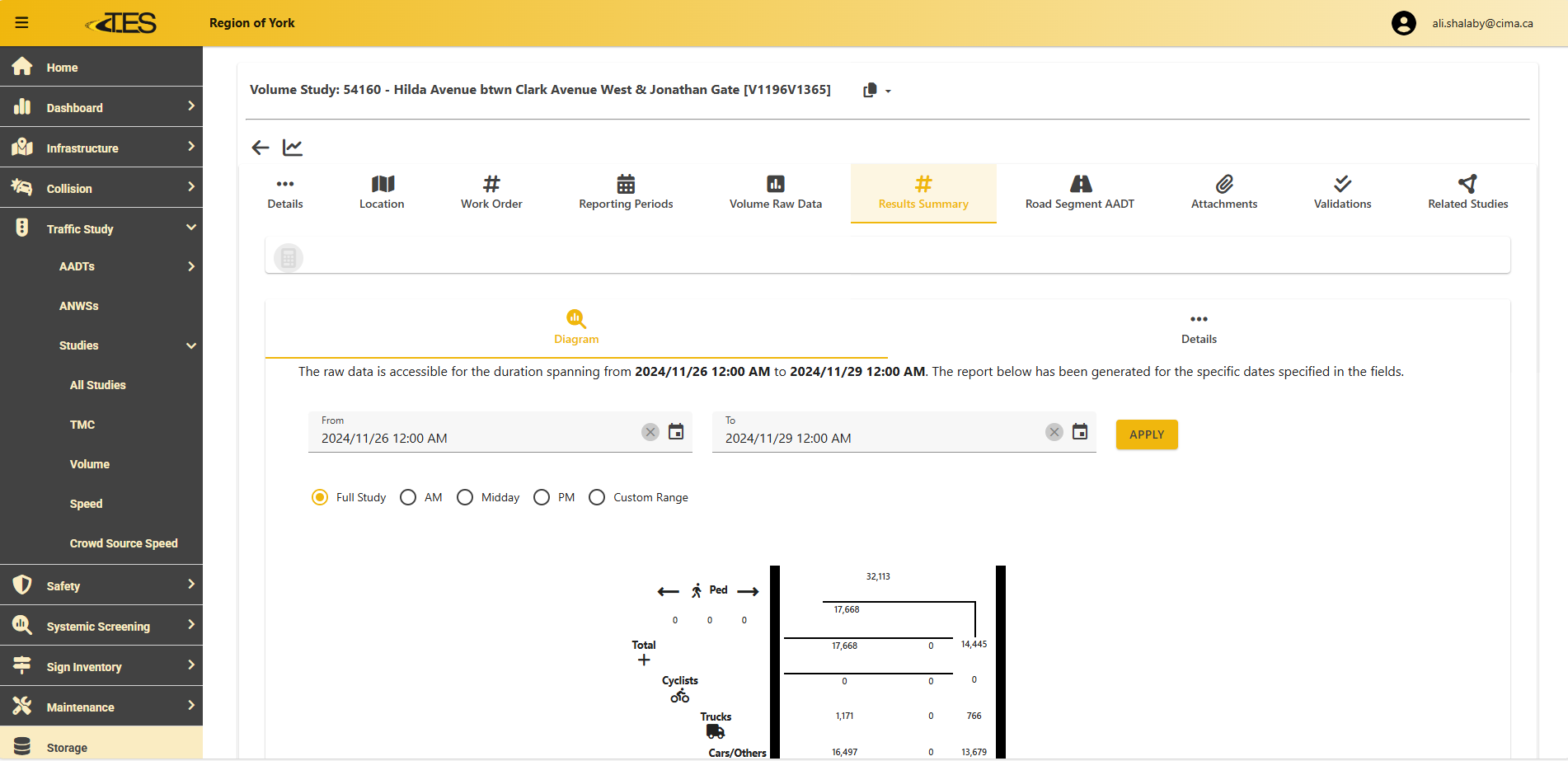

  • Navigate to the Results Summary tab to view the summary diagram of the volume from your study.

  • The tab displays a graphical representation of traffic volume at the study location, categorized by road user type and direction from both approaches.

2. The Results Summary Diagram​

  • The diagram represents the shape of the location being studied, including the volume from each direction for various road user types.

  • Each value corresponds to road user types and volume, showing how much each group contributed to specific movements.

3. Hovering Over Values in the Diagram​

Hover over a number in the diagram to highlight:

  • The corresponding road users.

  • direction related to the value.

4. Pedestrians​

Pedestrian data includes:

  • Volumes for going left, right, and the total (center value).

  • If specific directions are unavailable, all counted pedestrians are included in one of the direction values.

5. Periods​

  • Click on different periods to change the volume displayed

  • Options for periods include AM , AM Peak , Midday , Midday Peak , PM , and PM Peak .

  • Default: Full Study (all volume data collected during the study).

6. Custom Range​

  • Select Custom Range to define a specific time range for displayed data:

    • Enter the From and To time .
